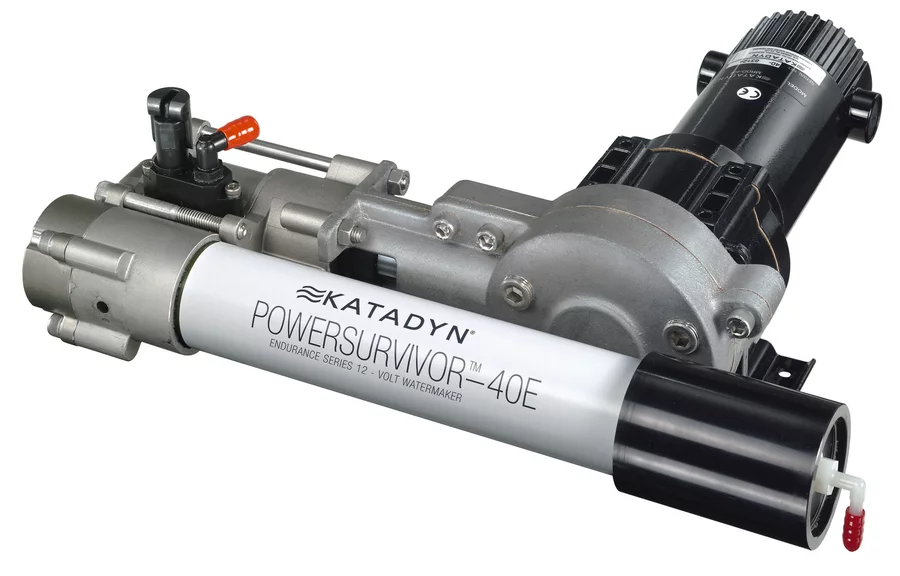

Katadyn PowerSurvivor 40E
Article No. : 8013438
The World's Smallest Electric Watermaker
- Product Information
- Specifications
- Downloads
Description

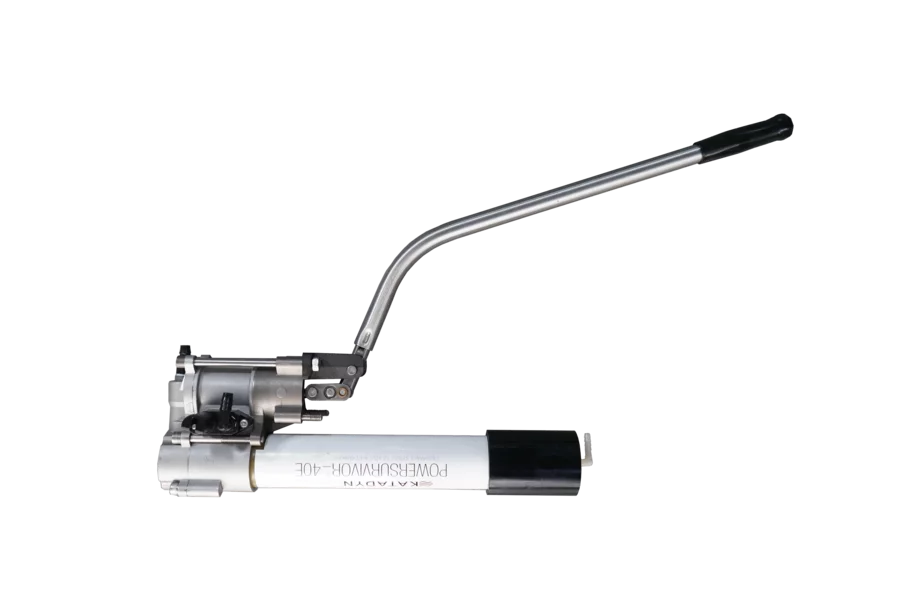

The world‘s smallest electrical desalinator. The 40E contains 40% fewer parts than its popular predecessor, the PowerSurvivor-35. Simplified construction and rugged design make the 40E remarkably easy to install, operate and maintain. Extraordinarily compact, the 40E can be installed in the nooks and crannies otherwise unusable in many yachts. No watermaker draws so few amps. Using only 4 amps, the 40E can run for extended periods on alternative power alone. The heart of the 40E is the rugged stainless high-pressure pump. Armed for the rigors of the marine environment, this watermaker is built to last. We're so certain, we've covered it with a superior Warranty: 3 years on most components. The PowerSurvivor-40E is the only power watermaker that converts to manual operation in emergencies.

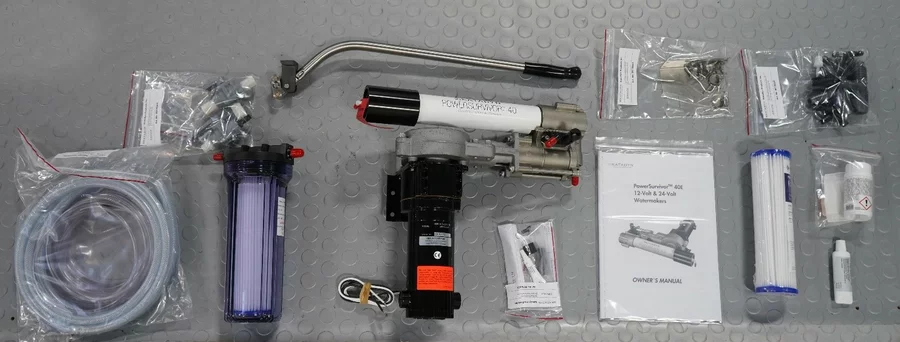

The Box contains the following items: PS 40 Unit - membrane/motor assembly Filter housing - Model 28 series (filter installed) Handle assembly Replacement filter - Pentair R30 Owners Manual Grease - Grizzly grease, 25g tube Bio 1-1000 3 Way Valves Kit, PS40 (8018664) Membrane Preservative, 240g (8013609) Spool Valve Kit, PS40 (8016525) Fittings Kit, PS40 (8018659) Prefilter Installation Kit, PS40 (8018661) Hose Kit, PS40 (8013989) - 34,5'' Intake hose, 10' product hose, 10'' brine discharge hose
Water source | : | Salt water |
Group size | : | 1, 2-5 |
Usage | : | often |
Product type | : | Motor operated |
Effective against | : | Salt |
Product category desalination | : | Marine, stationary |
Operation | : | powered |
Output/hour | : | 1.5 |
Output/day | : | 40 |
System type | : | analog |
Water Source | : | DC |
Output per Time (gal/L) | : | 1.5 gal/h (5.7 L) ± 15% |
Capacity Rating (gal/L day) | : | 40 gal (151 L) per day |
Salt rejection | : | 98.4% (min. 96%) |
Weight | : | 25 lbs (11.3 kg) |
Usage | : | 12v DC 4A 32 Watts/1 gal. 8.5 Watts/1 liter |
Length | : | 419 mm |
Height | : | 394 mm |
Width | : | 172 mm |
Downloads
Technisches Datenblatt Power Survivor 40E_DE
Factsheet Power Survivor 40E_EN
Fiche technique Power Survivor 40E_FR
Box Content Power Survivor 40E_EN
Instruction Spool Valve Power Survivor 40E_EN
Instruction Sheet_Kit Brush PS 40 12 V_EN
Instruction Sheet_Check Valve Kit PS 40_EN
Instruction Sheet_Kit Drive 12V PS 40_EN
