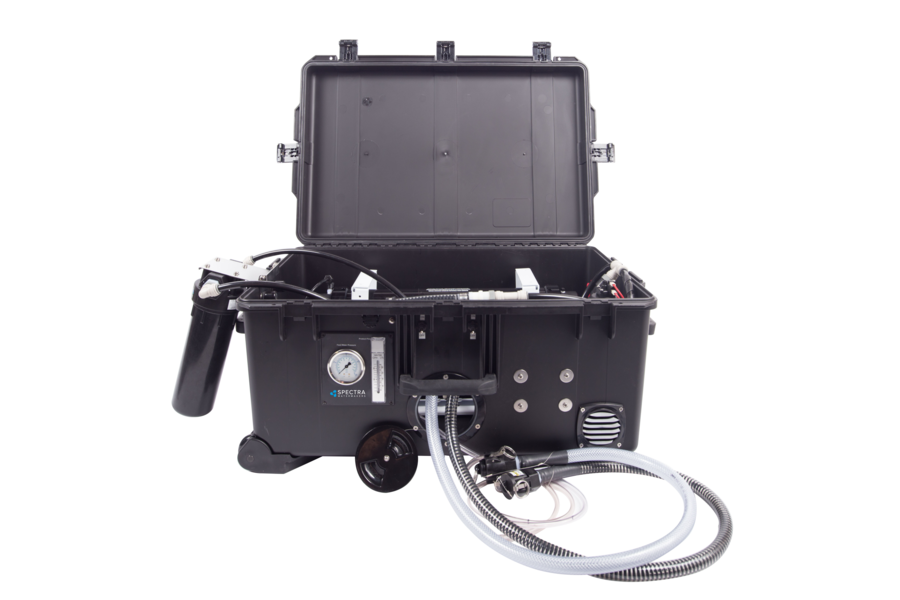

Aquifer 200 AFD Watermaker

The Aquifer 200 watermakers offer an easy-to-use, lightweight, and portable way to purify water from virtually any water source. The Aquifer systems are built into rugged, military grade molded plastic cases that are engineered to survive the outdoor environment. The watermakers in the Aquifer 200 can provide 8 gallons/hour (30 Liters/hour) of purified water from salty, brackish, or freshwater.The Aquifer 200 is available in 12 or 24VDC and all Aquifers come standard with Spectra’s unique Clark Pump energy recovery device, a product flow meter, pressure gauge and a hand-held salinity monitor. The Aquifer series is ideal for emergencies, disaster relief, expeditions, military, and recreation. These units are built using Spectra’s revolutionary and proprietary Clark Pump, a high pressure intensifier that makes the watermaker so energy efficient that they are easily powered by solar panels, a car battery, wind generator, or other renewable power source.

Water source	:	Salt water
Group size	:	>10
Usage	:	often, daily
Effective against	:	Salt
Product category desalination	:	Land based, portable
Operation	:	powered
Output/hour	:	8.3
Output/day	:	200
System type	:	analog
Output per Time (gal/L)	:	8.3 gal/h (31 l)
Salt rejection	:	99.40%
Weight	:	60 lbs (27.7 kg)
Usage	:	12v DC 10A 14.5 Watts/1 gal (4 Watts/1 liter)
Length	:	31 in (79 cm)
Height	:	20.5 in (52 cm)
Width	:	15.5 in (40 cm)

Aquifer 200 Fact Sheet.pdf

Wiring Diagram_AF-200-12 24V.pdf

Plumbing Schematic_AF200_360_STD.pdf

Aquifer 200 DC Manual.pdf
